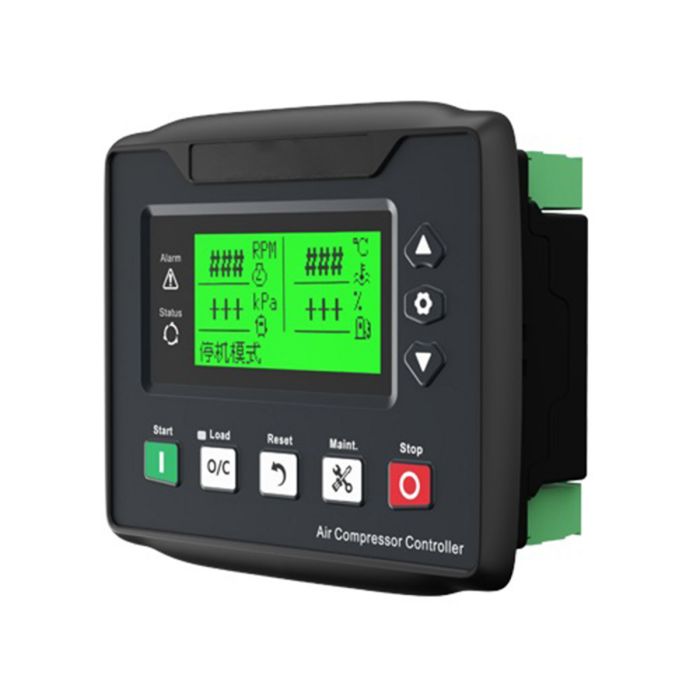

Part Number: ACC4100

Application:
for SmartGen

Feature:
132x64 LCD display with backlit; Optional Chinese and English languages; Simple operation interface;
Screen protection is hard screen of Acrylic material with better wear-resisting and scratch resistant qualities;
Silicon panel and buttons with strong adaptive capacity of high/low temperature environment;
RS485 communication port realizes "three remotes" function by MODBUS protocol;
CANBUS port can monitor ECU common data (speed, water temperature, load rate, fuel consumption etc.).
DPF regeneration function, which meets Euro V emission standard.
6 ways of analog sensors, 3 ways of fixed resistance types, and 3 ways of flexible resistance/current/voltage types, both of them can precisely detects data of engine fuel level, air compressor venting pressure, and venting temperature etc.
Multiple temperature, pressure, and level sensor curves can used directly, and custom sensor curve is also available.
Can precisely collect all kinds of parameters of air compressor, which provides high water temperature, low oil pressure, over speed, and under speed protection, and venting pressure high, venting temperature high protection etc. with complete protection functions.
Speed regulator function can automatically adjust speed according to venting pressure of the air compressor.
All outputs are relay outputs.
Parameter setting function allows users to change and set the parameters, and at the same time they are stored in internal EEPROM memory and will not get lost at outage.
Crank disconnect conditions (speed, oil pressure) are optional.
Speed can be obtained from speed sensor or charging generator W/L.
Power supply range DC (8-35V), which can suits different battery voltage environment.
Event log, real-time clock functions.
Heater, cooler and fuel pump control functions;
Maintenance function; maintenance time due action can be set.
All parameters apply digital adjustment, getting rid of common potentiometer's analog regulation method, and improving reliability and stability of the whole device.
Sealing gasket is designed for enclosure with IP65 protection class.
Metal clips are used to fix the controller, and they are especially outstanding under high temperature environment.
Modular design, antiflaming ABS plastic shell, pluggable terminals, built-in mounting, compact structure and easy installation.
