Part Number:
18961-02800KB 32350-898-003 18715-02800 G3102-02800

Application:
For Kubota Low Boy II GL6000 GL7000 GL6500S AV6500-B Generator Genset
For Honda EP-1800 EM2200 EC2500 EP-2500 EX800 Generator

Package Included:

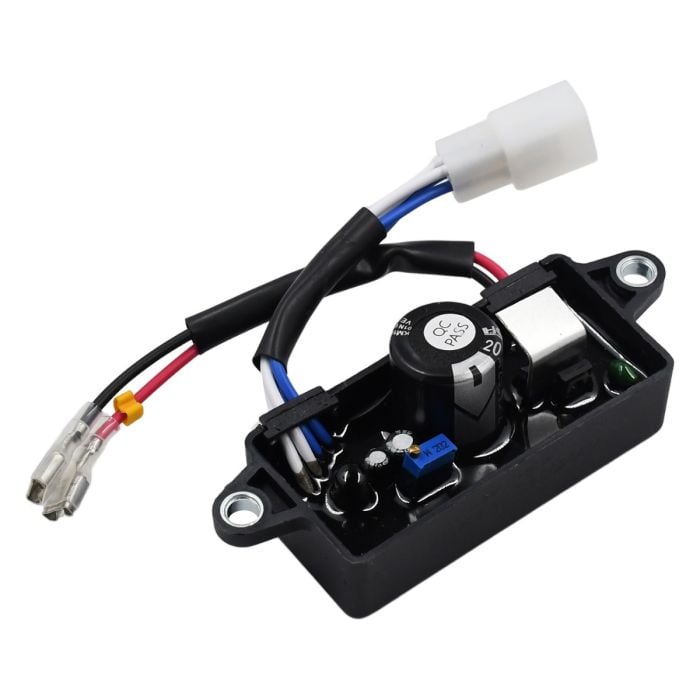

Voltage Regulator x 1

Specification:
Sensing Input Voltage 18 - 24 VAC, 1 phase 2 wire
Voltage Regulation < ±2% (within 4% engine governing)
Power Input: Voltage 60 - 90 VAC, 1 phase 2 wire
Voltage Build Up Residual volts at AVR terminal >1 VAC
Excitation Output Voltage 5 - 85 VDC
Voltage Adjust Range 110 VAC ± 15%
Current: Continuous 3A, Intermittent 4A for 60 sec
Thermal Drift 0.05% per change in AVR ambient
Field / rotor resistance: minimum 25 Ω
Environment
Vibration 1.5G @ 5 - 30 Hz 5.0G @ 30 - 500 Hz Relative Humidity < 95%
Operating Temperature -40 ~ 60 C
Storage Temperature -40 ~ 85 C

100% Brand New and High-Quality Aftermarket Item
Please Carefully Check All Pictures and Part Numbers in the Listing to Make Sure It's the Correct Product you Need
