Miniature hydrogen fuel cells are reshaping the material handling industry. Over 60,000 hydrogen-powered forklifts now operate throughout the U.S. Most people focus on larger applications, but these compact power sources have changed how businesses implement green operations.
These small-scale fuel cells pack quite a punch. They convert fuel to electricity with 60% efficiency, which makes them powerful for their size. Businesses love them because refueling takes just 10 minutes, unlike the long hours needed for battery charging.
Our team spent months studying miniature fuel cell technology's hidden aspects. This piece reveals industry insights that manufacturers tend to miss. You'll learn about actual efficiency rates and maintenance tips for this emerging technology. Experts project it will grow into a $42 billion market by 2030.
How Does a Hydrogen Fuel Cell Work in Miniature Form
The miniature hydrogen fuel cells create electricity through an elegant yet simple electrochemical process without combustion. These compact energy devices generate electrical power directly from hydrogen through chemical reactions, unlike traditional power sources that burn fuel.
Simple principles of hydrogen fuel cell technology
A hydrogen fuel cell's core components include an anode (negative electrode), a cathode (positive electrode), and an electrolyte layer between them. The fuel cell's operation begins when hydrogen enters at the anode, where a catalyst—usually platinum—splits hydrogen molecules into protons and electrons. The protons pass through the electrolyte membrane while the electrons flow through an external circuit that powers devices.
Oxygen from the air meets the protons and returning electrons at the cathode side to produce water. The process creates only pure water and heat as emissions when using pure hydrogen, making it remarkably clean.
The Polymer Electrolyte Membrane (PEM) fuel cell sees the most use in miniaturized applications. These cells work at relatively low temperatures between 50-100°C (122-212°F), which allows quick startups and reduces component wear.
Distinctive features of miniature fuel cells
Miniature fuel cells come with several unique characteristics. Small fuel cells use edge-collected cell designs that connect electrodes through their edges. While this setup would lead to high ohmic losses in larger cells, it works quickly at smaller scales.
State-of-the-art manufacturing techniques like thin-film electronic microfabrication or thick-film printing processes create ultra-thin components. These methods achieve much better precision than what's possible with larger fuel cells.
The hydrogen storage approach sets these cells apart. These miniature systems often use metal hydride storage, chemical hydrogen generation, or small composite tanks at moderate pressures instead of large pressurized tanks. To cite an instance, see how some designs release hydrogen when sodium borohydride solutions contact a catalyst.
These fuel cells maintain their structural integrity through advanced sealing techniques and composite membrane structures, despite their small size. Some cutting-edge designs combine silicon dioxide with Nafion membranes to create composite structures that resist dimensional changes while keeping high proton conductivity.
Power output capabilities versus larger cells
Miniature hydrogen fuel cells achieve remarkable efficiency metrics despite their compact size. A typical small PEM fuel cell converts 40-60% of energy to electricity, matching their larger counterparts. This efficiency far exceeds conventional combustion engines that only convert 15-20% of energy.
These miniature fuel cells' power output varies based on their design and use. The smallest commercial cells generate around 10 watts of nominal power with operating voltages from 5-9 volts. These compact units can run smartphones, small fans, LED lights, or portable cameras.
A single miniature fuel cell produces about 1 volt, so multiple cells must be stacked to achieve useful power output. This modular approach allows power scaling from milliwatts to several watts based on what the application needs.
These miniature fuel cells offer much better energy density than batteries. A fuel cell-powered smartphone could stay on standby for a week, while lithium battery-powered phones last only 1-2 days. Quick refueling instead of long recharging times makes these cells valuable for portable devices.
The Hidden Truth About Smallest Hydrogen Fuel Cell Efficiency
Marketing materials from miniature hydrogen fuel cell manufacturers paint a rosy picture, but the truth about their efficiency and performance is more complex. Industry experts want consumers to know about these compact power sources' challenges before they invest.、
Real-world efficiency rates vs. manufacturer claims
Manufacturers advertise theoretical efficiency rates up to 60% for miniature hydrogen fuel cells, but real-world performance shows different results. Independent tests reveal that actual efficiency ranges from 40-60%. Many commercial units perform closer to 40% in normal conditions.
The difference between promised and actual performance has many causes. Lab testing conditions don't match real situations. Companies measure efficiency in perfect settings—with ideal membrane humidity, clean components, and perfect temperatures. These conditions are impossible to maintain in ground applications.
On top of that, system components affect the overall efficiency. Most calculations only look at the fuel cell stack and ignore power losses from pumps, blowers, and control electronics. These parts can eat up 10-30% of the total power output, which means the actual system efficiency drops.
Temperature and environmental impacts on performance
Temperature is the biggest factor that affects miniature fuel cell performance. These devices work best between 60-80°C. Lower temperatures slow down reactions, while higher ones can dry out membranes and speed up wear and tear.
Managing temperature in real situations is tough. Yan's research showed that fuel cell voltage gets better as temperatures rise from 60°C to 80°C but drops by a lot above 80°C. This makes thermal management a delicate balance.
The environment makes performance harder to predict. Freeze-thaw cycles are especially dangerous for small systems. Water inside the fuel cell expands by about 9% when frozen, which can damage membranes, gas layers, and catalysts. Tests in below-zero temperatures showed power generation dropped 11-26% after freeze-thaw cycles.
Humidity levels are vital too. Too dry or too wet conditions hurt performance. Humidity under 30% dries out membranes, while levels over 80% can flood and block gas channels.
Lifespan considerations industry experts rarely discuss
Marketing materials talk more about efficiency than how long these fuel cells last. Companies claim design lifespans of 5,000-10,000 hours, but actual life depends on how you use them and in what conditions.
AC Transit's fuel cell project revealed surprising results. Two fuel cells from 2002, designed to last 5,000 hours, ran for 25,969 and 32,134 hours. Fuel cells built in 2008-2009 with 10,000-hour warranties lasted an average of 25,974 hours.
But these impressive numbers come with a catch. Performance drops steadily over time. AC Transit's data showed power output fell below the 80-85kW mark by the end. Unplanned maintenance also increased, with monthly emergency calls going up from 8 to more than 10 in later stages.
Maintenance makes a big difference in how long they last. Regular cleaning of gas channels, proper water control, and careful temperature changes can extend their life. Poor maintenance speeds up wear, especially in small systems where designers simplified thermal and water management to save space.
Forklift Fuel Cell Revolution: Size Matters
Miniature hydrogen fuel cells first proved their worth in warehouses and distribution centers. Material handling equipment led the way. Now, 8,000 fuel cell forklifts run without Department of Energy funding, showing a change from test projects to real business use.
Why material handling equipment adopted miniature cells first
Material handling equipment became the perfect starting point for miniature hydrogen fuel cells. We needed these cells because indoor warehouses just need zero-emission power sources to meet safety rules. Battery-powered equipment was the only option until now.
High-volume facilities with multiple daily shifts face many challenges with battery operation. Battery forklifts need special electrical setups, take 15-20 minutes for battery swaps each shift, and use up space for storage, charging, and maintenance. These limitations gave hydrogen technology a chance to show what it could do.
Comparison with traditional forklift batteries
The differences between hydrogen fuel cells and traditional lead-acid batteries are nowhere near close:
| Feature | Hydrogen Fuel Cells | Lead-Acid Batteries |
| Refueling/Recharging | 2-3 minutes | 8 hours + cooling time |
| Additional units needed | One fuel cell per forklift | 2-3 batteries per forklift |
| Space requirements | 75% less space than battery infrastructure | Requires charging rooms and swap areas |
| Cold storage performance | Maintains consistent power | Performance drops by 25-50% |
| Voltage stability | Constant throughout shift | Decreases as battery discharges |
Fuel cells keep steady voltage while working, but batteries lose power as they drain. Battery performance can drop up to 50% in cold environments, which makes fuel cells extra valuable in refrigerated distribution centers.
Case study: Warehouse efficiency improvements
Big retailers have seen great results with miniature hydrogen fuel cells. Walmart added hydrogen fuel cells to 41 distribution centers and plans to grow, using over 10,000 units in their facilities. Amazon followed by investing up to $70 million in fuel cell products for their warehouses.
A major car maker switched its 200-vehicle fleet (including 25% Yale forklifts) to hydrogen power. They found that refueling takes just three minutes instead of long battery charging times. These changes improved productivity a lot - a single car warehouse running 24/7 can lose about $7,000 every minute during delays.
Miniature fuel cells' compact size creates a chain of benefits. Companies use less warehouse space for power systems, get more reliable performance, and see better productivity that helps their bottom line.

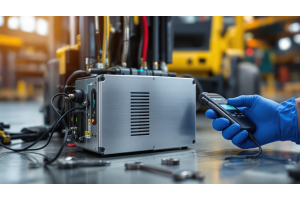

DIY Guide to Hydrogen Equipment Maintenance
Miniature hydrogen fuel cells last longer with proper maintenance, but manufacturer manuals rarely give you the full picture. You can extend your hydrogen equipment's life and avoid pricey failures by becoming skilled at simple maintenance techniques.
Essential tools for miniature fuel cell maintenance
Your miniature fuel cell needs specific tools to stay in top condition:
- Hydrogen leak detector or hydrogen-specific gas sensors (highly sensitive to concentrations below 1%)
- Pressure gages and regulators rated for hydrogen service
- Appropriate torque wrenches to properly tension bolts
- Non-sparking tools (specifically designed for hydrogen service)
- Purging equipment to safely remove hydrogen from system
- Clean, lint-free cloths and approved cleaning solutions
Safety comes first. Start all maintenance work by following OSHA standard 1910.147 to isolate energy sources with proper lockout/tagout procedures. You'll also need tools to record calibration, inspection, and test results for each maintenance session.
Common failure points and how to prevent them
Most miniature fuel cell failures are preventable. Water management problems show up as performance issues, and membrane damage creates pinholes that let gas cross between electrodes. You should purge water from the stack before long storage periods.
Membrane damage happens over time from mechanical stress caused by temperature changes. Your fuel cell will last longer if you keep operating temperatures steady between 60-80°C.
Connectors and fittings can also fail. Check compression fittings regularly, especially for missing front ferrules that might cause leaks. Valves can suffer from hydrogen embrittlement, where hydrogen makes metal components weaker.
Troubleshooting techniques the manuals don't cover
Poor performance? Check if voltage readings are consistent across all cells in the stack. Different readings point to possible membrane failures or catalyst degradation.
Your stack's power might drop below 50% of its rated output after long storage. You can fix this by carefully adding distilled water and purging the system before running it. This helps with dried-out membranes, a common storage problem.
Sudden fuel cell shutdowns usually happen because of hydrogen starvation. Make sure fuel pressure stays right (usually 0.45-0.55 bar for miniature systems) and look for anything blocking hydrogen flow. Protection circuits might kick in if current draw gets too high - reducing the load should get things running again.
Unexpected Applications of Miniature Hydrogen Cells
Miniature hydrogen fuel cells are transforming industries in unexpected ways. These compact power sources offer solutions to complex energy challenges in a variety of applications.
Portable power solutions
Telecom providers now use miniature fuel cells as backup power systems. These units supply uninterrupted energy during blackouts, which helps telecom operators save 64% in yearly operating costs compared to conventional methods. Microsoft showed a breakthrough that made headlines when it powered a datacenter using only hydrogen for 48 straight hours, reaching the most important milestone of 3 megawatts of power generation. This "moon landing moment" shows how diesel generators could be eliminated from critical infrastructure.
Agricultural monitoring systems
Scientists at Northwestern University created soil-powered fuel cells that capture energy from dirt-dwelling microbes. These systems power sensors that track soil conditions and send data through radio to IoT networks. The fuel cells work underground as long as the soil contains organic carbon for microbes to break down, which means they could run forever. These cells work effectively in both wet and dry conditions and outlast lithium batteries by more than double.
Emergency backup systems
The California Department of Transportation tested hydrogen fuel cells that provide backup power to traffic signals and communication systems for seven straight days. Plug Power has deployed over 7,600 hydrogen fuel cells worldwide for backup power needs. These systems watch voltage levels on power busses and kick in right away during outages to deliver reliable power even in harsh weather.
Robotics and drone technology
Drone makers have improved flight times by 2-6 times by switching to hydrogen fuel cells instead of regular batteries. These systems let UAVs fly at 80 kilometers per hour for two hours without stopping. Engineers also design automated hydrogen refueling stations for logistics robots, which could save medium-sized warehouses over $1,000 each year in operating costs.
Conclusion
Miniature hydrogen fuel cells are evidence of clean energy innovation that has exceeded its original expectations. Though manufacturers make optimistic efficiency claims, ground applications show remarkable results with proper maintenance.
The technology's success with material handling equipment definitely opened doors to wider adoption. These compact power sources excel in a variety of settings and power telecommunications infrastructure and agricultural monitoring systems. Knowing how to deliver consistent performance with zero emissions makes them a practical solution for companies that want sustainable operations.
Miniature hydrogen fuel cells have a bright future ahead. Quick refueling times, steady power output, and flexibility make them an attractive alternative to traditional power sources. More industries continue to find their potential, and these small but mighty power generators will shape our clean energy future.
