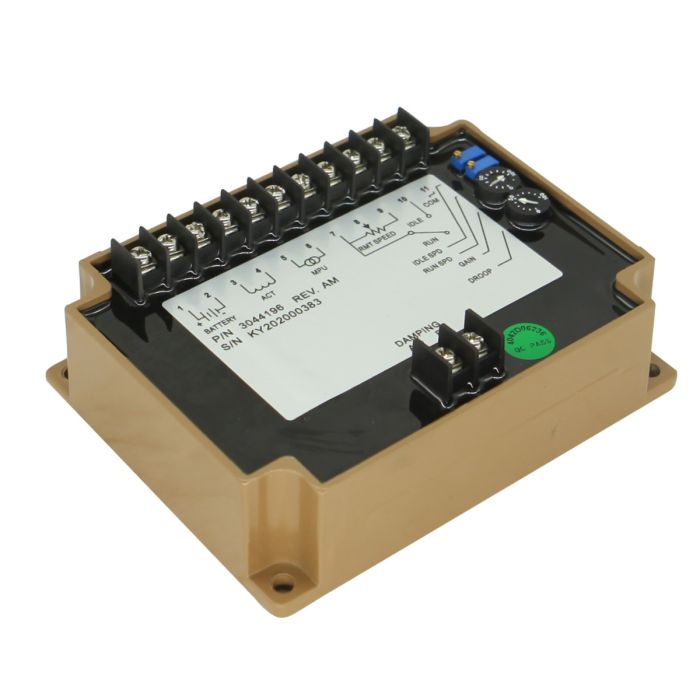

Generator Speed Controller 3044196 24V for Cummins
Generator Speed Controller 3044196 24V for Cummins
In stock
Estimate Shipping Methods
,
Part Number: EFC3044196 3044196
Package Contents: 1*Engine Governor
Thermal Stability: Max +/- 0.7%
IDLE Regulation: 260 +/-20Hz
Droop Regulation:
Minimum: 15Hz +/- 6Hz/ 1 Amp
Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation: +/-200Hz (with 1 KΩ connected)
AUX Input Sensitivity: 148Hz / 1V +/-10Hz
Impedance: 1MΩ
Working Temp Range: -40 ~ 85 Celsius
Working Humidity Range: Maximum 95%
Temperature: -55 ~ 92 Celsius
Vibration: 20-100HZ 500mm/Sec
Voltage: 24V
Grounding Pole: Negative pole
Power Supply: 40mA
Actuator Continuous Current:
Minimum: 1A
Maximum: 4.5A
Signal: 2 ~ 120V RMS
Application:
For Cummins EFC Full Closed-Loop Control Technology Generator Speed Control Board
Notice:
Above-Mentioned Parameters are Tested with a 3800Hz Working Frequency
Condition: Aftermarket Product with High Quality
