Please Carefully Check All Pictures and Part Numbers in the Listing to Make Sure It's the Correct Product you Need.
Part Number: P125M-5603 1205M-5603 1205M-5601
Application:
For Curtis
Specifications:

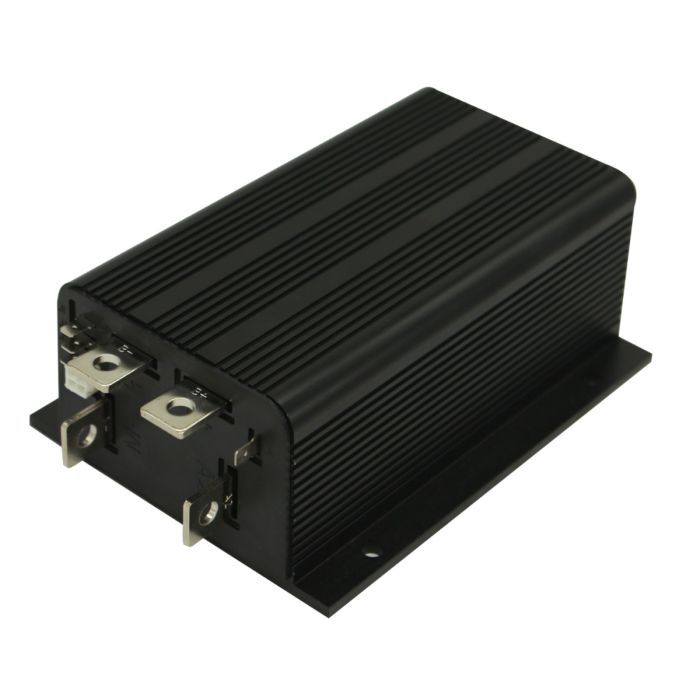

The P125M-5603 controller is a DC series winding motor speed controller, designed as the replacement of Curtis 1205M-5603 controller
and old Curtis 1205 controllers like 1205-201, 1205-202, etc.
By defaut, we will deliver the controller with default setting of 48V / 500A / 0-5kΩ (Throttle Type = "0").
For better applying the controller to your system, the buyer should confirm the battery system voltage and the throttle type (0-5kΩ, 5k-0Ω or 0 – 5V)
Controller Model: P125M-5603
Nominal Battery Voltage (Volts): 36/48
The voltage can be set to either 36 volts or 48 volts.
By default, it is set as 48 volts, with an allowable working range 33-48V.
If it is set as 36 volts, the allowable working range is 25-36V.
Ten throttle types can be used with P125M-5603:
Type 0: 2-wire potentiometer, 0–5kΩ
Type 1: 2-wire potentiometer, 5kΩ–0
Type 2: single-ended 0–5V input
Type 3: 2-wire potentiometer, 4.6kΩ–0
Type 4: 2-wire potentiometer, 5.5kΩ–0
Type 5: 2-wire potentiometer, 1kΩ–0
Type 6: ITS input
Type 7: single-ended 6.3–10.6 V input
Type 8: single-ended 6–12 V input
Type 9: single-ended 3-wire potentiometer, 0–5kΩ
Specification:
P125M-5603 CONTROLLERSPWM operating frequency: 15 kHz
Electrical isolation to heartsick (min.): 500 VKSI
input current (no contactors engaged): < 60 mA without programmer; <130 mA with programmer
Logic input current: <1 mAStatus LED
output current (max.): 2 mA
Operating ambient temp. range: -40°C to 50°C (-40°F to 122°F)
Package environmental rating: ISTA 2A; electronics sealed to IP65
Package Including: 1 x DC Motor Controller
It Is a Replacement Part, Not Original Part. But It Can Work Good For You
