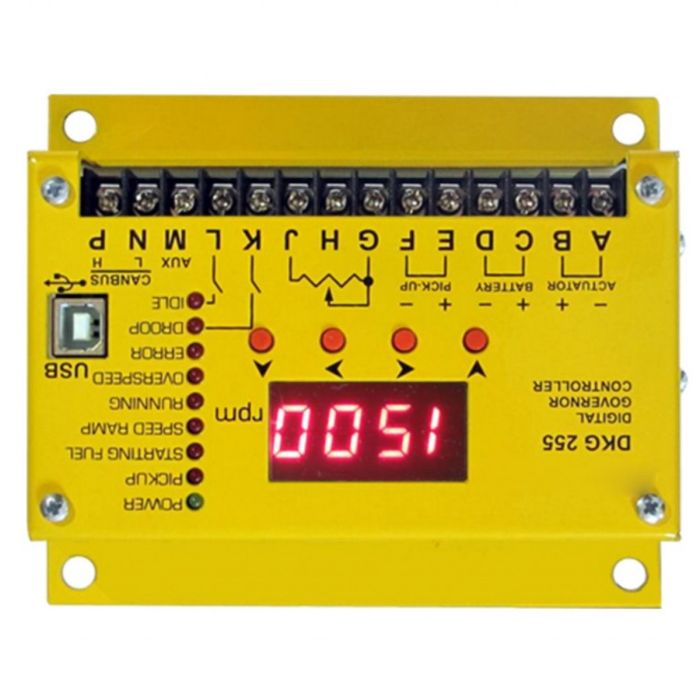

Part Number:DKG-255, DKG 255, DKG255

Application:
for Datakom

Specification:
DC Supply Range:10.0 to 33.0 V-DC
Current consumption:100mA max (actuator not connected)
Speed input range:40 Hz to 8000 Hz.
Speed signal amplitude:1.5 to 300 VAC-RMS
Speed signal input impedance:2 M- ohms
External speed trim:
5 K-ohms trimpot between terminals G and J
External speed trim range:± 6% min @3000Hz
Auxiliary input (terminal M):
Input voltage range:0 to 10VDC
Input impedance:150 k-ohms.
Adjustment range:±25% min @3000 Hz
Steady state speed accuracy:±0.2 %
Droop adjustment range:1 to 5% minimum
Actuator output:10 Amps continuous max
Operating temp.:-20°C (-4°F) to 70 °C (158°F).
Storage temp.:-30°C (-22°F) to 80 °C (176°F).
Maximum humidity:95% non-condensing.
