Please Carefully Check All Pictures and Part Numbers in the Listing to Make Sure It's the Correct Product You Need

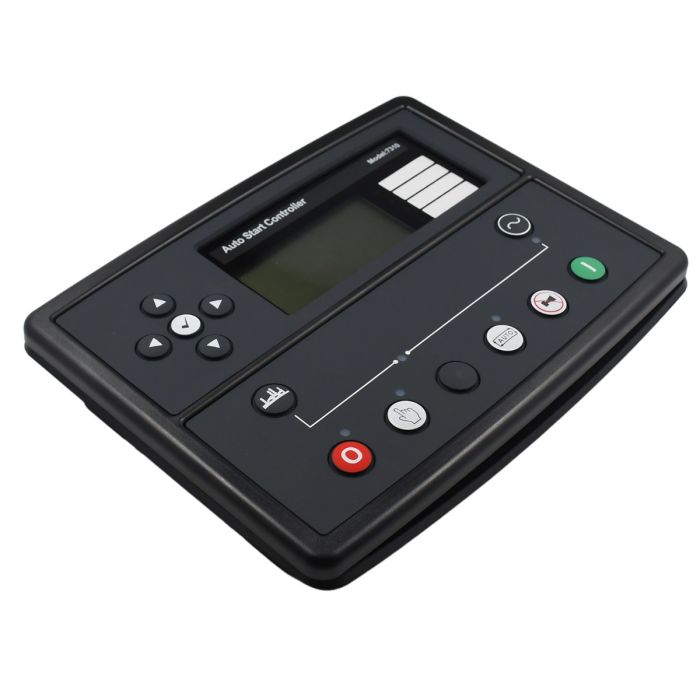

Part Number: DSE7310
OVERALL SIZE245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE220 mm x 160 mm (8.7" x 6.3")
KEY FEATURES †4-Line back-lit LCD text display†Five key menu navigation †Front panel editing with PIN protection †Customisable status screens †Power save mode †Support for up to three remote display units †9 configurable inputs †8 configurable outputs †Flexible sender inputs †Configurable timers and alarms †3 configurable maintenance alarms †Multiple date and time scheduler †Configurable event log (250) †CAN engine support †Integral PLC editor †Easy access diagnostic page †CAN and Magnetic Pick-up/Alt. sensing †Fuel usage monitor and low fuel alarms †Charge alternator failure alarm †Manual speed control (on compatible CAN engines) †Manual fuel pump control †Engine exerciser †“Protections disabled†feature †kW & kV Ar protectio
The 7310 Automatic Controller will also monitor the mains (utility) supply. The modules include USB, RS232 and RS485 ports as well as dedicated DSENet® terminals for system expansion.
The extensive list of features includes enhanced event and performance monitoring, remote communications and dual mutual standby.
Both modules are compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements.
