Please Carefully Check All Pictures and Part Numbers in the Listing to Make Sure It's the Correct Product you Need.

Part Number:

ESD5120

Applications:

Speed stability better than ± 0.25%

Speed range 1KHz ~ 7.5KHz

Thermal stability of ±1% maximum

DROOP adjust the minimum position is 15Hz ± 6Hz / per ampere load current changes

Maximum position 400Hz ± 75Hz / per ampere load current changes

External speed adjustment ± 200Hz (external 1K¦¸)

AUX input sensitivity 148Hz / 1V, ± 10Hz., Impedance 1M¦¸

IDLE adjustment 160 ± 20Hz ~ 95% of rated speed

10V maximum output current 20mA

Environment:

Operating temperature range -40 ~ 85

Operating humidity range of 95% maximum

Storage temperature -55 ~ 90

Shock 20-100HZ 500mm/Sec.

Input Power:

Supply voltage 12V and 24V DC battery system

Ground negative polarity

Power consumption 50mA

The implementation of the minimum continuous current 2.5A; maximum 10A

Speed sensor signal 0.5 ~ 120 RMS

Note: The measured performance parameter is the frequency of 4000Hz

Package Including: 1 x Electronic Engine Speed Controller

It Is a Replacement Part, Not Original Part. But It Can Work Good For You

My Cart

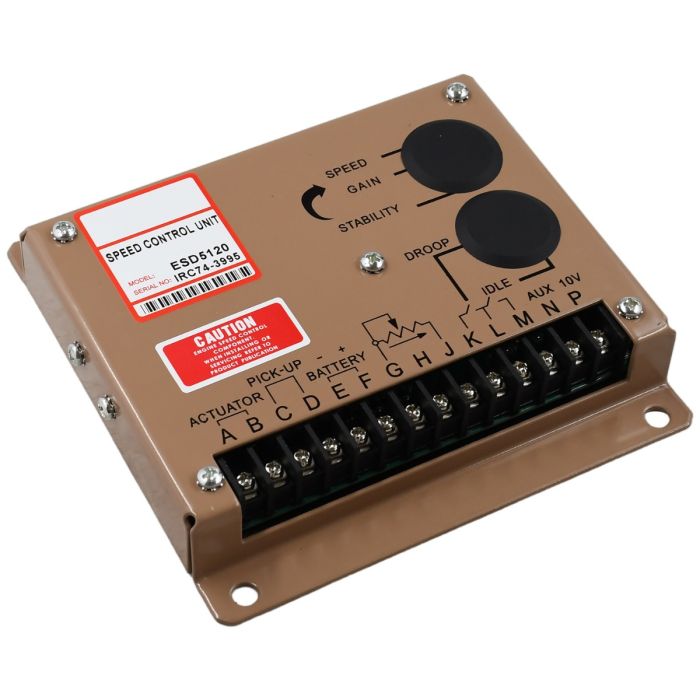

Electronic Engine Speed Controller ESD5120 for Governor Generator Genset Parts
