Part Number: DSE7320

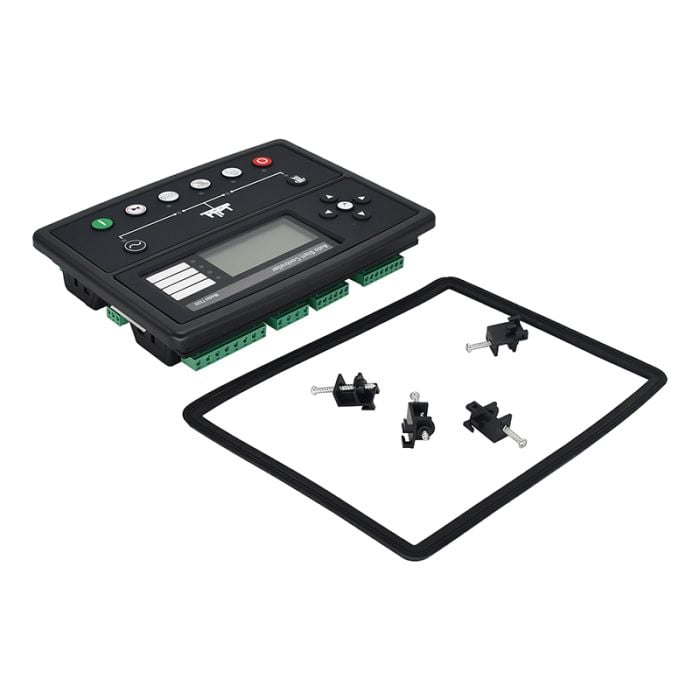

Package Included: Control Modules x1

MAXIMUM OPERATING CURRENT 340mA at 12V, 160mA at 24V MAXIMUM STANDBY CURRENT 160mA at 12V, 80mA at 24V,

CHRRGE FAIL/EXCITATION RANGE 0V to 35V MAINS (UTILITY) DSE7320 ONLY, VOLTAGE RANGE 15V - 333V C (L-N) FREQUENCY RANGE 3.5Hz to 75Hz

OUTPUTS

OUTPUT (FUEL) 15A DC at supply voltage OUTPUT B (START) 15A DC at supply voltage OUTPUTS C & D 8A 250 V (Volt free), AUXILIARY OUTPUTS E,F,G,H 2A DC at supply voltage

GENERATOR

VOLTAGE RANGE 15 V - 333 V C (L-N) FREQUENCY RANGE 3.5Hz to 75Hz, MAGNETIC PICK UP VOLTAGE RANGE +/- 0.5V to 70V,

FREQUENCY RANGE 10,000 Hz (max), OVERALL DIMENSIONS 240mm x 181mm x 42mm 9.4” x 7.1” x 1.6”

PANEL CUT-OUT 220mm x 160mm 8.7” x 6.3”

MAXIMUM PANEL THICKNESS 8mm 0.3”

KEY FEATURES

9 configurable inputs, 8 configurable outputs, Flexible sender inputs, Control logic facilities, Multiple date and time scheduler,

Configurable event log (250), CAN and Magnetic Pick-up/Alt. sensing, Fuel usage monitor and low fuel alarms, Charge alternator failure alarm,

Manual speed control (on compatible CAN engines), Manual fuel pump control, Engine exerciser, “Protections disabled” feature, kW overload protection,

Load switching (load shedding and dummy load outputs), Automatic load transfer, Power monitoring (kW h, kV Ar, kV A h, kV Ar h), Unbalanced load protection,

Independent Earth Fault trip, USB connectivity, Configurable display languages, Backed up real time clock, Remote SCADA monitoring via DSE Configuration Suite PC software,

Fully configurable via DSE Configuration Suite PC software

Application:

for Generator Control Module

It Is a Replacement Part Not Original Part But It Can Work Good For You
