Part Number: 0444, DC-0444, DC0444

Application:
for Davies Craig

Feature:
The Davies Craig Digital Electric Fan Controller Kit 0444 is designed to turn on fans by sensing air temperature as it passes through the radiator with the sensor placed in the radiator fins, so there is no need to cut hoses. It has an adjustable temperature range of 104 to 230º Fahrenheit / 40 to 110º Celsius and can display Centigrade or Fahrenheit. Temperature is set by pressing the set button. The controller can run 1 or 2 fans. The second fan (if applicable) will start 10 seconds after the first fan starts. It can be operated thermally and can also be powered any time the air conditioning is on

Specification:
Max voltage: 15V
Max current: 50A
Relay setup: Dual relay
Speed: Single speed - 10 second delay to start up the second fan
Applications: works with single and dual fan applications
Temperature Display: LED digital temp display - actual temperature + set temperature
Temperature Display: Centigrade or Fahrenheit Temperature settings: 104 to 230º F (40 to 110º C)
Temperature setting: Push Button
Circuit type: Pre-programmed micro controller
Output wires: Batt + Batt - IGN, AC Clutch, Fan #1, Fan #2 Thermistor Probe
Dimensions: 3.75" x 2.6" x 2.2" (95 x 65 x 56 mm)
You can use the A/C wire as a manual override by providing it with 12 Volts from a switch.
2 year warranty from Davies Craig
IMPORTANT: Not designed to control Davies Craig Electric Water Pumps (EWP): to control an EWP use Davies Craig 8002

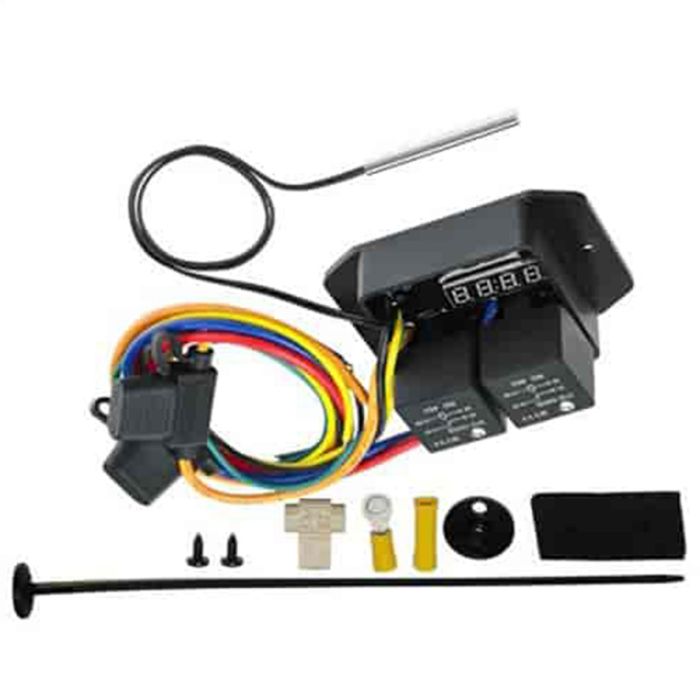

Kit Contents:
1X Digital Fan Controller
1X mount kit
1X scotch lock (wire tap)
1X yellow butt connector
2X ring terminal
2X self tapping screws

Built To Strict Quality Standards And Use Superior Quality Parts;

Made By a Certified Professional Supplier.
