Part Number: ASM17

Package Included: Controller x1

Isochronous Operation / Steady State Stability ± 0.25% or better

Speed Range / Governor 1K-7.5K Hz continuous

Speed Drift with Temperature ± 1% Maximun

IDLE Adjustment 160 ± 20Hz ~ 60% of set speed

Droop adjustment Min. (K-L Jumpered)

15Hz. ± 6Hz. for 1.0 A change

Droop adjustment Max. (K-L Jumpered)

400Hz. ± 75Hz. for 1.0 A change

Droop Adj. Max. (K-L Jumpered)

875Hz., ± 75Hz. for 1.0 A change

Speed Trim Range ± 200Hz.

Remote Variable Speed Range 500 -7.5Hz. or any part thereof

Terminal Sensitivity

J: 100Hz., ± 15Hz / Volt 5.0K Impedance

L: 735Hz., ± 60Hz / Volt 65K Impedance

N: 148Hz., ± 10Hz / Volt 1Meg. Impedance

P: 10V DC Supply 20ma Max.

Speed Switch Adjustment Range 1000-10000Hz.

Environmental Ambient Operating Temperature Range -40 ° c to + 85 ° c

Relative Humidity up to 95%

Storage Temperature -55 ° c ~ 90 ° c

Shock 20-100HZ 500mm / Sec.

Input Power Supply 12 or 24V DC Battery Systems (Transient and Reverse Voltage Protected)

Polarity Negative Ground (Case Isolated)

Power Consumption 50mA continuous plus actuator current

Actuator Current Range 25 ° c- (Inductive Load)

Min. 2.5 Amps, Max. 10 Amps continuous

Speed Sensor Signal 0.5-120V RMS

Speed Switch Relay Contacts (N.O.and N.C.) 10Amp

Application:

for GTR-17

It Is a Replacement Part Not Original Part But It Can Work Good For

You

My Cart

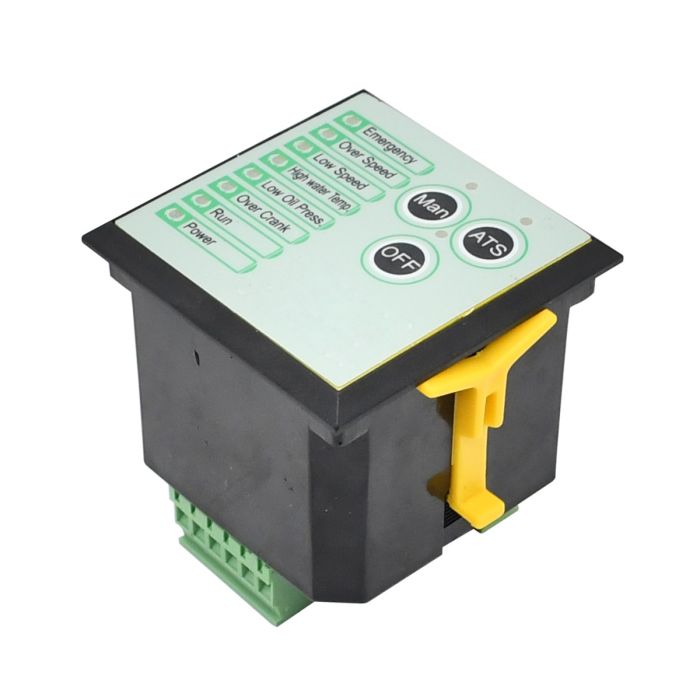

Generator Controller ASM17 5A 24VDC New Auto Start Stop Function for GTR-17
