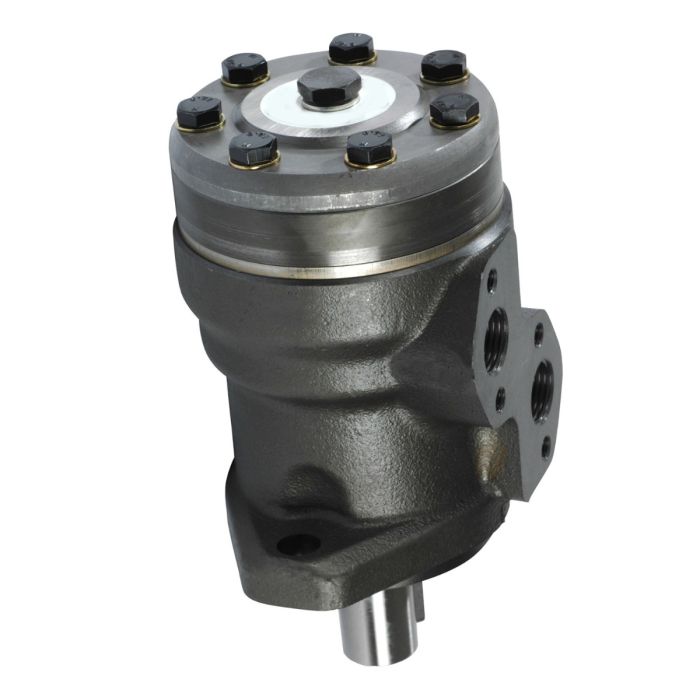

32mm 1/2 BSP Hydraulic Orbital Motor OMR250-151-0247 For Sauer Danfoss
32mm 1/2 BSP Hydraulic Orbital Motor OMR250-151-0247 For Sauer Danfoss
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Sauer Danfoss Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov
In stock
Estimate Shipping Methods
,
Please Carefully Check All Pictures and Part Numbers in the Listing to Make Sure It's the Correct Product you Need
Part Number: OMR250-151-0247 OMR2501510247 OMR-250-151-0247 151-0247 1510247 BMR-250-2BDN1
Applications:
For Sauer Danfoss Hydraulic Orbital Motor
Product Information:
Parameters:
Cylindrical output shaft 32mm with 1/2 BSP side ports
OMR 250 Low Speed High Torque motor, Geometric Displacement 249.3 cm3
Specification:
Motor size: 250
Geometric displacement( cm^3[in]): 249,3[15.26]
Max speed cont: 240 rpm
Max speed int: 300 rpm
Max torque cont(Nm[lbf in]): 540[4780]
Max torque int(Nm[lbf in]): 610[5400]
Max output power cont(kW[hp]): 10,0[13.4]
Max output power int(kW[hp]): 12,0[16.1]
Max pressure drop cont(bar[psi]): 175[2540]
Max pressure drop int(bar[psi]): 200[2900]
Max pressure drop peak(bar[psi]):225[3260]
Max oil flow cont(l/min[gpm]): 60[15.9]
Max oil flow int(l/min[gpm]): 75[19.8]
Max starting pressure with unloaded shaft(bar[psi]): 5[75]
Min starting torque at max press drop cont(Nm[lbf in]): 500[4430]
Min starting torque at max press drop int(Nm[lbf in]): 550[4870]
Max inlet pressure cont(bar[psi]): 175[2540]
Max inlet pressure int(bar[psi]): 200[2900]
Max inlet pressure peak(bar[psi]): 225[3260]
Max return pressure with drain line cont(bar[psi]): 175[2540]
Max return pressure with drain line int(bar[psi]): 200[2900]
Max return pressure with drain line peak(bar[psi]): 225[3260]
Package Included: Hydraulic Orbital Motor x 1
It Is a Replacement Part, Not Original Part. But It Can Work Good For You
