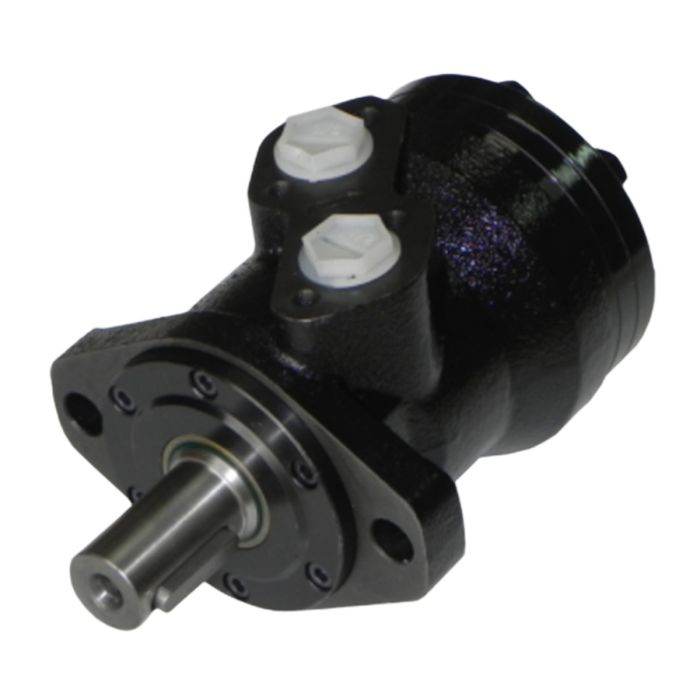

Hydraulic Orbital Motor 1'' OMR80-151-0401 For Danfoss
Hydraulic Orbital Motor 1'' OMR80-151-0401 For Danfoss
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Danfoss Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov
In stock
Estimate Shipping Methods
,
Part Numbers: OMR80-151-0401 OMR80-151-0701 OMR x 80-11185560 BMR-80-2CDN1 11185560 151-0401 151-0701
Package Includes:
1x Hydraulic Orbital Motor
Specifications:
Geometric displacement: 80.3cm³/[4.91in]
Max speed cont: 750rpm
Max speed int: 940rpm
Max torque cont: 195Nm/[1730lbf in]
Max torque int: 220Nm/[1960lbf in]
Max output power cont: 12.5kW/[16.8hp]
Max output power int: 15.0kW/[20.1hp]
Max pressure drop cont: 175bar/[2540psi]
Max pressure drop int: 200bar/[2900psi]
Max pressure drop peak: 225bar[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 150Nm/[1330lbf in]
Min starting torque at max press drop int: 170Nm/[1510lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
Applications:
For Danfoss
Replacement Parts. As Good As OEM at a Fraction of the Price. Exact Same Performance as Original
