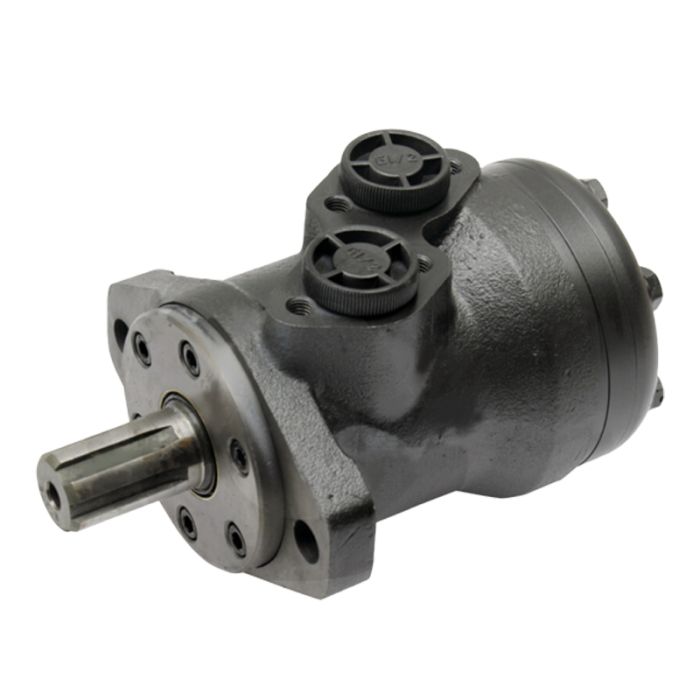

Hydraulic Orbital Motor 151-0726 for Danfoss
Hydraulic Orbital Motor 151-0726 for Danfoss
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Danfoss Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov
In stock
Estimate Shipping Methods
,
Part Number:
For Danfoss OMR250-151-0726 OMR250-1510726 OMR2501510726 151-0726 1510726
Specification:
Splined Output Shaft 1" with 1/2 BSP Side Ports
Motor size: 250
Geometric displacement( cm^3[in]): 249,3[15.26]
Max speed cont: 240 rpm
Max speed int: 300 rpm
Max torque cont(Nm[lbf in]): 540[4780]
Max torque int(Nm[lbf in]): 610[5400]
Max output power cont(kW[hp]): 10,0[13.4]
Max output power int(kW[hp]): 12,0[16.1]
Max pressure drop cont(bar[psi]): 175[2540]
Max pressure drop int(bar[psi]): 200[2900]
Max pressure drop peak(bar[psi]):225[3260]
Max oil flow cont(l/min[gpm]): 60[15.9]
Max oil flow int(l/min[gpm]): 75[19.8]
Max starting pressure with unloaded shaft(bar[psi]): 5[75]
Min starting torque at max press drop cont(Nm[lbf in]): 500[4430]
Min starting torque at max press drop int(Nm[lbf in]): 550[4870]
Max inlet pressure cont(bar[psi]): 175[2540]
Max inlet pressure int(bar[psi]): 200[2900]
Max inlet pressure peak(bar[psi]): 225[3260]
Max return pressure with drain line cont(bar[psi]): 175[2540]
Max return pressure with drain line int(bar[psi]): 200[2900]
Max return pressure with drain line peak(bar[psi]): 225[3260]
Package Included: 1 * Hydraulic Orbital Motor
It Is a Replacement Part, Not Original Part. But It Can Work Good For You
