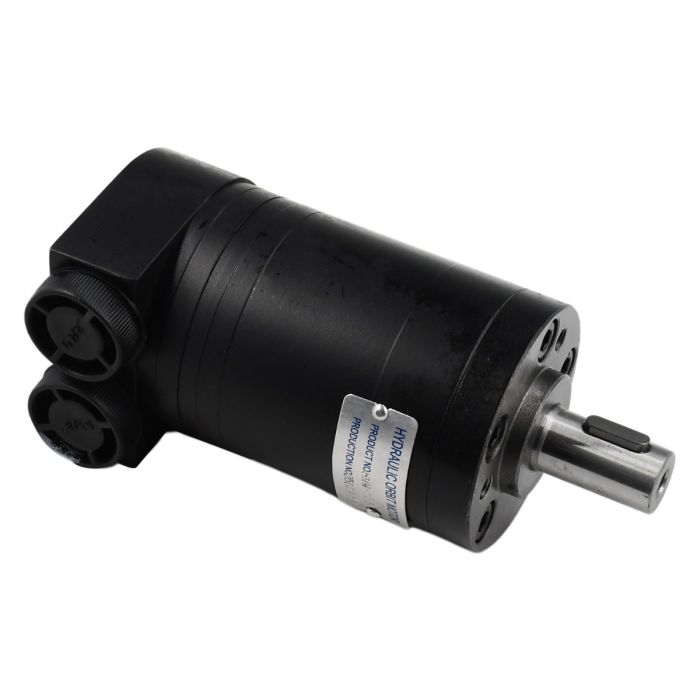

Hydraulic Orbital Motor 151G0034 For Danfoss
Hydraulic Orbital Motor 151G0034 For Danfoss
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Danfoss Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov
In stock
Estimate Shipping Methods
,
Part Numbers: 151G0034 OMM12.5-151G0034 OMM12.5151G0034 151G-0034
Package Includes: 1 x Hydraulic Orbital Motor
Specification:
Type: OMM
Motor Size: 12.5
Geometric displacement: 12.5cm³/[0.77in]
Max speed cont: 1550 rpm
Max speed int: 1940 rpm
Max torque cont: 16Nm/[140lbf in]
Max torque int: 23Nm/[00lbf in]
Max output power cont: 2.4kW/[3.2hp]
Max output power int: 3.2kW/[4.3hp]
Max pressure drop cont: 100bar/[1450psi]
Max pressure drop int: 140bar/[2030psi]
Max pressure drop peak: 200bar[2900psi]
Max oil flow cont: 20L/min
Max oil flow int: 25L/min
Max starting pressure with unloaded shaft: 4bar/[60psi]
Min starting torque at max press drop cont: 12Nm/[105lbf in]
Min starting torque at max press drop int: 17Nm/[150lbf in]
Max inlet pressure cont: 140bar/[3050psi]
Max inlet pressure int: 175bar/[3630psi]
Max inlet pressure peak: 225bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 225bar/[3050psi]
Applications:
For Danfoss Motors
Replacement Parts. As Good As OEM at a Fraction of the Price. Exact Same Performance as Original
