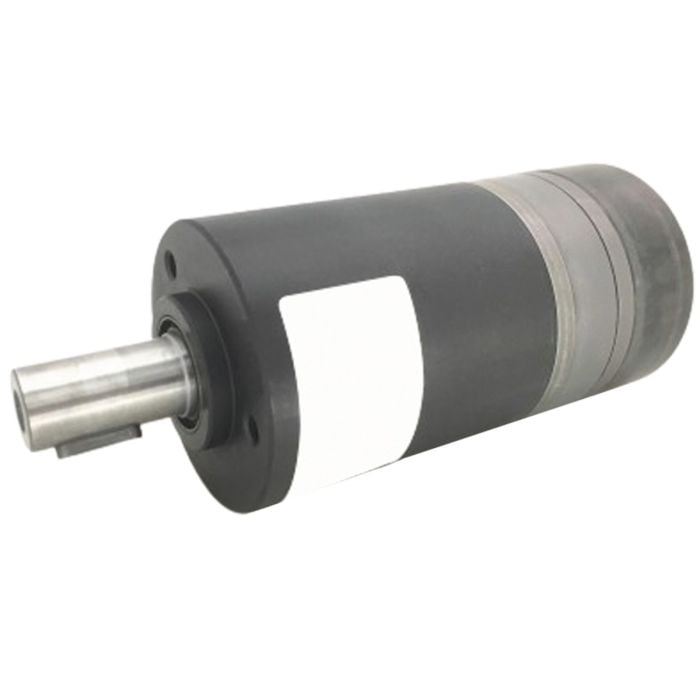

OEM Hydraulic Orbital Motor OMM32 - 151G0003 For Danfoss
OEM Hydraulic Orbital Motor OMM32 - 151G0003 For Danfoss
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Danfoss Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov
In stock
Estimate Shipping Methods
,
Part Number: OMM32 - 151G0003 OMM32151G0003 151G0003 BMM-32-M-A-1E
Package Includes:
1 X 16mm 3/8 BSP Orbital Motor
Specification:
Speed: 630 RPM
Horsepower: 2.4 Kilowatts
Type: OMM
Motor Size: 32
Geometric displacement: 31.6cm³/[1.93in]
Max speed cont: 630 rpm
Max speed int: 800 rpm
Max torque cont: 40Nm/[350lbf in]
Max torque int: 57Nm/[500lbf in]
Max output power cont: 2.4kW/[3.2hp]
Max output power int: 3.2kW/[4.3hp]
Max pressure drop cont: 100bar/[1450psi]
Max pressure drop int: 140bar/[2030psi]
Max pressure drop peak: 160bar[2320psi]
Max oil flow cont: 20L/min
Max oil flow int: 25L/min
Max starting pressure with unloaded shaft: 4bar/[60psi]
Min starting torque at max press drop cont: 34Nm/[300lbf in]
Min starting torque at max press drop int: 48Nm/[425lbf in]
Max inlet pressure cont: 140bar/[3050psi]
Max inlet pressure int: 175bar/[3630psi]
Max inlet pressure peak: 225bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 225bar/[3050psi]
Application: For Danfoss OMM32 - 151G0003
It Is a Replacement Part Not Original Part. But It Can Work Good For You
