Part Number: OMM8-151G0041 OMM8151G0041 151G0041

Package Included:

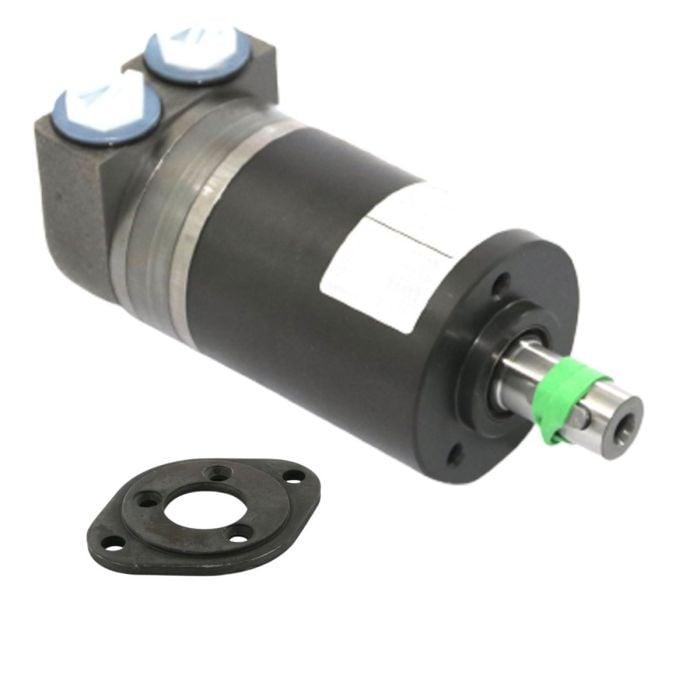

Hydraulic Orbital Motor x 1

Specification:
Cylindrical output shaft 16mm with 3/8 BSP side ports
Motor size: 8
Geometric displacement( cm^3[in]): 8,2[0.50]
Max speed cont: 1950 rpm
Max speed int: 2450 rpm
Max torque cont(Nm[lbf in]): 11[95]
Max torque int(Nm[lbf in]): 15[135]
Max output power cont(kW[hp]): 1,8[2,4]
Max output power int(kW[hp]): 2,6[3.5]
Max pressure drop cont(bar[psi]): 100[1450]
Max pressure drop int(bar[psi]): 140[2030]
Max pressure drop peak(bar[psi]): 200[2900]
Max oil flow cont(l/min[gpm]): 16[4.2]
Max oil flow int(l/min[gpm]): 20[5.3]
Max starting pressure with unloaded shaft(bar[psi]): 4[60]
Min starting torque at max press drop cont(Nm[lbf in]): 7[60]
Min starting torque at max press drop int(Nm[lbf in]): 10[90]
Max inlet pressure cont(bar[psi]): 140[2030]
Max inlet pressure int(bar[psi]): 175[2540]
Max inlet pressure peak(bar[psi]): 225[3260]
Max return pressure with drain line cont(bar[psi]): 140[2030]
Max return pressure with drain line int(bar[psi]): 175[2540]
Max return pressure with drain line peak(bar[psi]): 225[3260]

Application:
For Danfoss

It Is a Replacement Part Not Original Part. But It Can Work Good For You.
