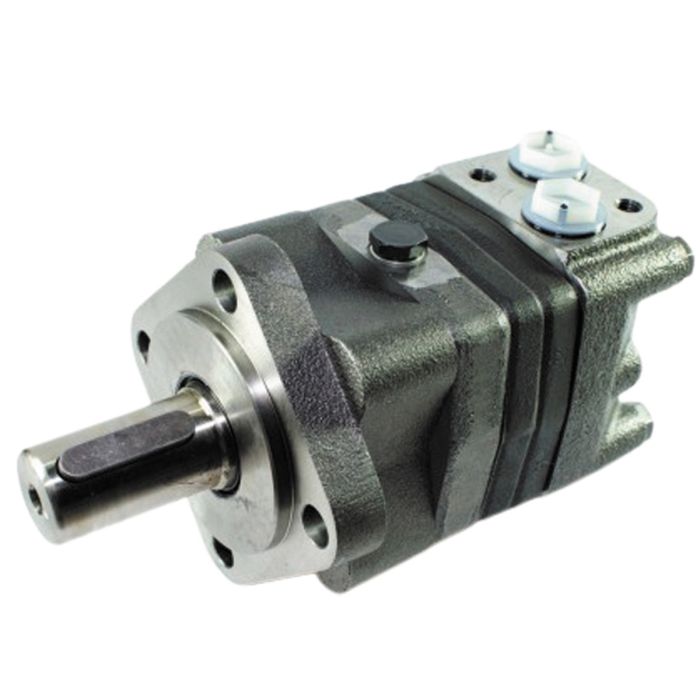

Hydraulic Orbital Motor 32mm 1/2 BSP OMS250 - 151F0505 For Danfoss
Hydraulic Orbital Motor 32mm 1/2 BSP OMS250 - 151F0505 For Danfoss
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Danfoss Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov
In stock
Estimate Shipping Methods
,
Part Number: OMS250 - 151F0505 OMS250151F0505 151F0505 BMSY-250-E4BD
Package Includes:
1 X Orbital Motor
Specification:
Cylindrical Output Shaft 32mm With 1/2 BSP Port
Type: OMS
Motor size: 250
Geometric displacement: 250.0cm³/[15.26in]
Max speed cont: 300rpm
Max speed int: 360rpm
Max torque cont: 720Nm/[6370lbf in]
Max torque int: 870Nm/[7700lbf in]
Max output power cont: 14.5kW/[19.4hp]
Max output power int: 18.0kW/[24.1hp]
Max pressure drop cont: 200bar/[2900psi]
Max pressure drop int: 250bar/[3630psi]
Max pressure drop peak: 270bar[3920psi]
Max oil flow cont: 75L/min
Max oil flow int: 90L/min
Max starting pressure with unloaded shaft: 8bar/[115psi]
Min starting torque at max press drop cont: 560Nm/[4960lbf in]
Min starting torque at max press drop int: 700Nm/[6200lbf in]
Max inlet pressure cont: 230bar/[3340psi]
Max inlet pressure int: 295bar/[4280psi]
Max inlet pressure peak: 300bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 210bar/[3050psi]
Application: For Danfoss
It Is a Replacement Part Not Original Part. But It Can Work Good For You
