Inline 6 Data Link Adapter Diagnostic Tool Full Kit 3165033 For Cummins
Inline 6 Data Link Adapter Diagnostic Tool Full Kit 3165033 For Cummins
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Cummins Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov
In stock
Estimate Shipping Methods
,
Part Number:
3165033 2892093 2892176 4919780 4919797 2892095 3163597 3163096 4918713 4919781
Application:
For Cummins
For Komatsu
For TMC
The INLINE 6 Support Basic, Lite, Pro Level. Included Software Version 8.7 working on Windows System up to Windows 10. Communicate with your PC through a 9-pin serial connector or a Universal Serial Bus (USB) through a 4-pin standard connector. The INLINE 6 adapter connects to vehicle power, the SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.
Package Included:

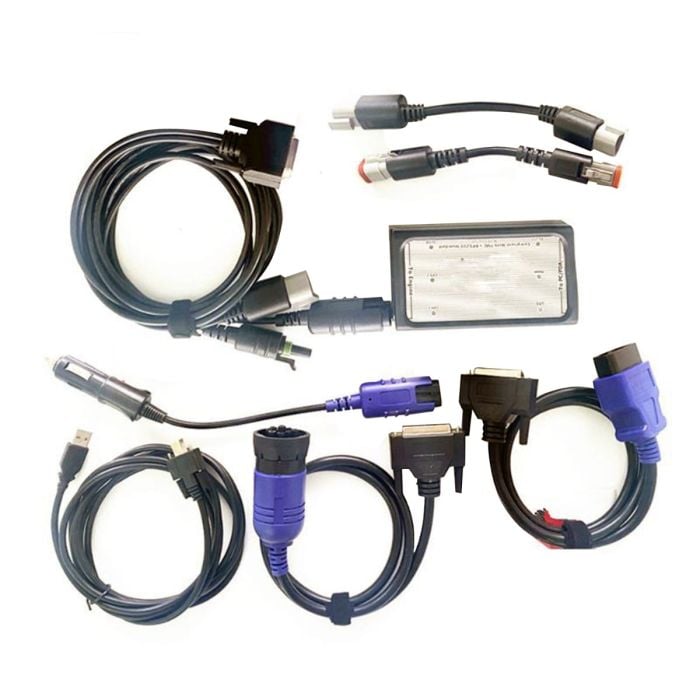

1 x Inline 6 Data Link Adapter Diagnostic Tool full kit
Specification:
Supports SAE J1708/J1587 and J1939/CAN data links
Both CAN ports auto detect between 250 &500 kbps
Supports USB full speed port at up to 2M baud rate
Supports RS-232 PC serial port at up to 115.2k baud rate
Derives 8 V to 50 V DC power from vehicle
Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
Both CAN ports support SAE J1939, SAE J2534, and lSO 15765 protocols
Rated for -40° to +85* C operating temperature
100% Brand New and High-Quality Aftermarket Item
Please Carefully Check All Pictures and Part Numbers in the Listing to Make Sure It's the Correct Product You Need.
