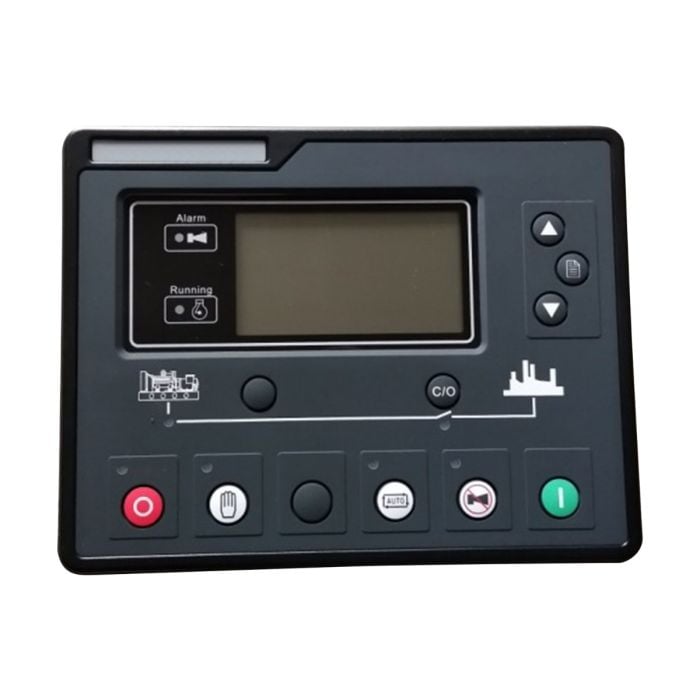

LCD Genset Smart Controller HGM7210 For Diesel Generator
LCD Genset Smart Controller HGM7210 For Diesel Generator
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Diesel Generator Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov
In stock
Estimate Shipping Methods
,
Part Number: HGM7210
Package Included:
Genset Smart Controller x 1
Specification:
Display: LCD(132*64)
Operation Panel: Silicon Rubber
Language: Chinese & English & Others
Digital Input: 7
Relay Output: 8
Analogue Input: 5
AC System: 1P2W/2P3W/3P3W/3P4W
Alternator Voltage: (15~360)V(ph-N)
Alternator Frequency: 50/60Hz
Monitor Interface: RS485
Programmable Interface: USB/RS485
DC Supply: DC(8-35)V
Case Dimensions(mm): 197*152*47
Panel Cutout(mm): 186*141
Operating Temp.: (-25~+70)℃
Main characteristics:
With ARM-based 32-bit CPU, highly integrated hardware, new reliability level.
132x64 LCD with backlight, multilingual interface (including English, Chinese or other languages) which can be chosen at the site, making commissioning convenient for factory personnel.
Improved LCD wear-resistance and scratch resistance due to hard screen acrylic.
Silicon panel and pushbuttons for better operation in the high-temperature environment.
RS485 communication port enabling remote control, remote measuring, remote communication via ModBus protocol (controller with RS485 port only).
Equipped with SMS (Short Message Service) function. When genset is alarming, the controller can send short messages via SMS automatically to max. 5 telephone numbers. besides, generator status can be controlled and checked using SMS (controller with GSM port only).
Application:
For Diesel Generator
It Is a Replacement Part Not Original Part. But It Can Work Good For You
