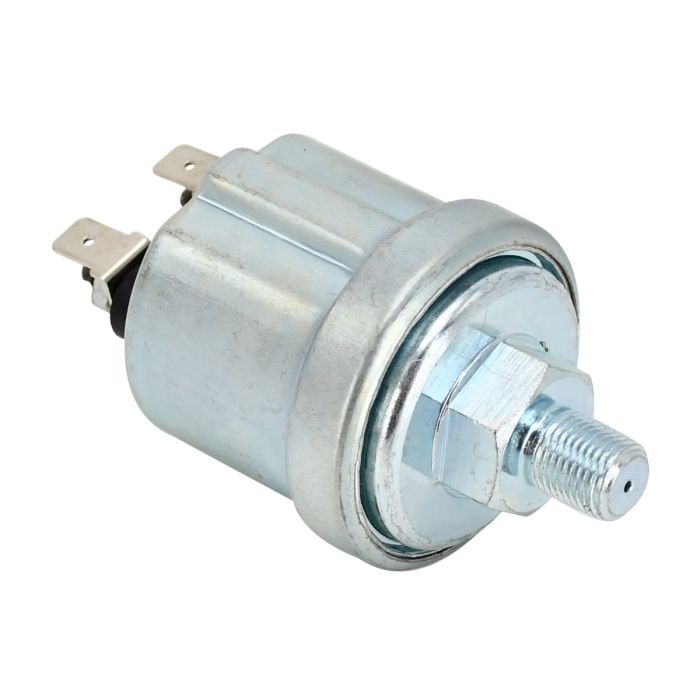

Oil Pressure Sender SW-100-20 0-100 For Datcon
Oil Pressure Sender SW-100-20 0-100 For Datcon
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Datcon Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov
In stock
Estimate Shipping Methods
,
Part Number: SW-100-20
For Datcon
Specification:
New blade type terminals so there is no chance to break for the terminals
Input: 0-100 psi.
Output: 240-33 ohms resistance. Case grounded. Stewart-Warner type.
S - signal output blade.
WR - Low 20 psi alarm switch.
Ground - case;
when pressure is bigger than 20 psi, the WR switch will be open, when pressure is smaller 20 psi, the WR switch will be closed, or connect to ground.
Accuracy: within 5% full scale.
Thread: 1/8"-27NPT. See our fitting set for other thread size below.
White zinc environment friendly plated, RoHS compliant.
Wiring connectors: 8-32 stud, with blades and socket.
Symbols: S for signal, should use wide blade, G for grounding.
Hardware bag include: sockets, insulating sleeves.
Dimensions: body diameter 1.76", body length 1.5", total length 3".
Package Including:
Oil Pressure Sender x 1
It Is a Replacement Part, Not Original Part. But It Can Work Good For You
