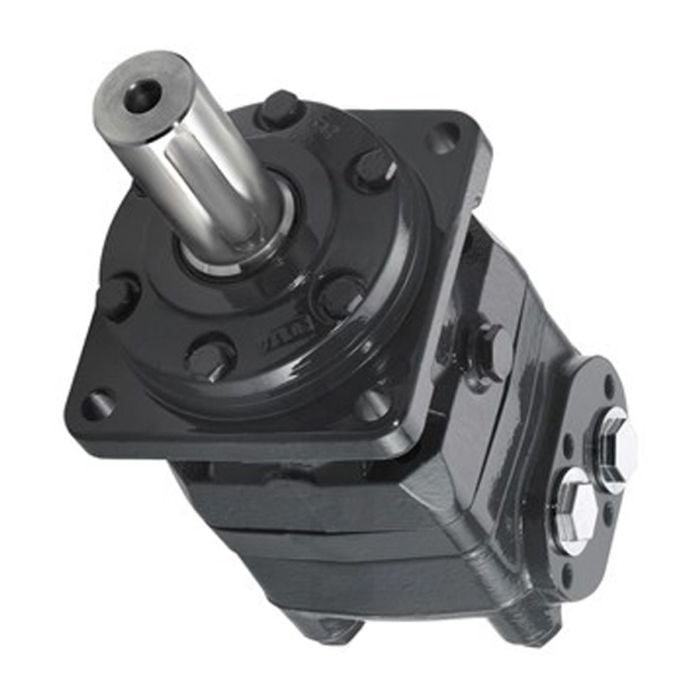

Orbital Motor OMT160-151B3006 For Danfoss
Orbital Motor OMT160-151B3006 For Danfoss
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Danfoss Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov
In stock
Estimate Shipping Methods
,
Part Numbers:151B3006 OMT160-151B3006 OMT160151B3006 OMT160 - 151B3006 BMT-160-4-FD-D
Package Includes:
1x Orbital Motor
Specification:
Motor size: 160
Geometric displacement( cm^3[in]): 161,1[9.83]
Max speed cont: 625 rpm
Max speed int: 780 rpm
Max torque cont(Nm[lbf in]): 470[4160]
Max torque int(Nm[lbf in]): 560[4960]
Max output power cont(kW[hp]): 26,5[35.5]
Max output power int(kW[hp]): 32,0[42.9]
Max pressure drop cont(bar[psi]): 200[2900]
Max pressure drop int(bar[psi]): 240[3480]
Max pressure drop peak(bar[psi]): 280[4060]
Max oil flow cont(l/min[gpm]): 100[26.4]
Max oil flow int(l/min[gpm]): 125[33.0]
Max starting pressure with unloaded shaft(bar[psi]): 10[145]
Min starting torque at max press drop cont(Nm[lbf in]): 340[3010]
Min starting torque at max press drop int(Nm[lbf in]): 410[3630]
Max inlet pressure cont(bar[psi]): 210[3050]
Max inlet pressure int(bar[psi]): 250[3630]
Max inlet pressure peak(bar[psi]): 300[4350]
Max return pressure with drain line cont(bar[psi]): 140[2030]
Max return pressure with drain line int(bar[psi]): 175[2540]
Max return pressure with drain line peak(bar[psi]): 210[3050]
Applications:
For Danfoss Orbital Motor
For Cylindrical Shaft
Replacement Parts. As Good As OEM at a Fraction of the Price. Exact Same Performance as Original
