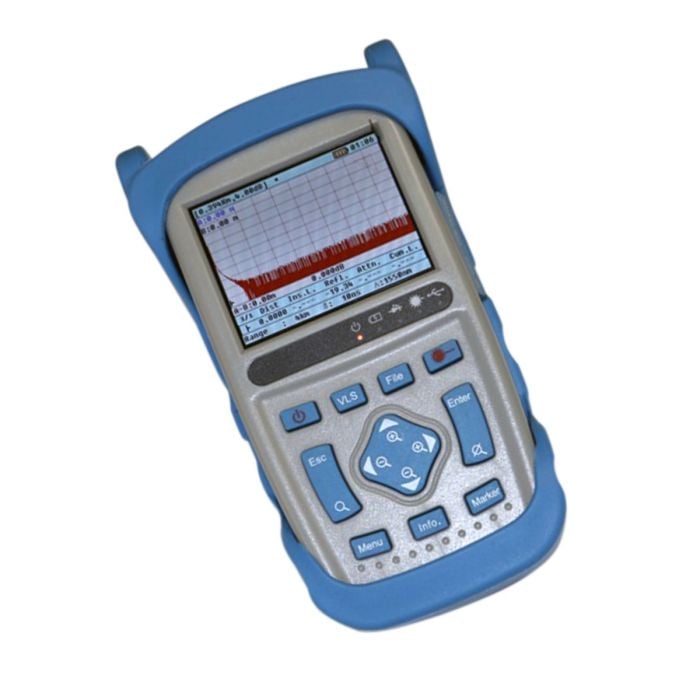

OTDR Optical Time Domain Reflectometer ST3300-1625C
OTDR Optical Time Domain Reflectometer ST3300-1625C
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov
In stock
Estimate Shipping Methods
,
Package Included: OTDR Optical Time Domain Reflectometer x 1
Specification:
Sub-Model: ST3300-1625C ST3300-1625D
Wavelength: 1625nm
Dynamic Range (dB) : 30 33
Pulse Duration(ns): 10/20/50/100/200/500/1us/2us/5us/10us/20us
Even Dead Zone(m): ≤1.8m
Attenuation Dead Zone: ≤10m
Attenuation Detect Accuracy(dB/dB): ±0.05
Loss Threshold: 0.01
Sampling Resolution(m): 0.16-5（0.16 0.32 0.64 1.28 2.56 5.08）
Distance Measure Accuracy(m): ±(1m+5×0.005%×distance+sampling space)
Max Measuring Distance (km): 1-160Km
Data Storage: ＞10000 records
Storage Format: .sor bellcore file
Averaging Time: 5s,15s,30s,1min,2min,3min
Dimensions(H×W×T): 210*112*67mm
Weight: 1KG
Screen resolution: 320*240,3.5 inch
Operating Temperature: 0℃-50℃
Storage Temperature: -20℃-60℃
Relative Humidity: 0%-95%(non-condensing)
Connector: FC(ST/SC Interchangeable)/PC
Connectivity: USB/SD card
Visible Fault Locator: Wavelength: 650nm; Farthest distance test:5Km
