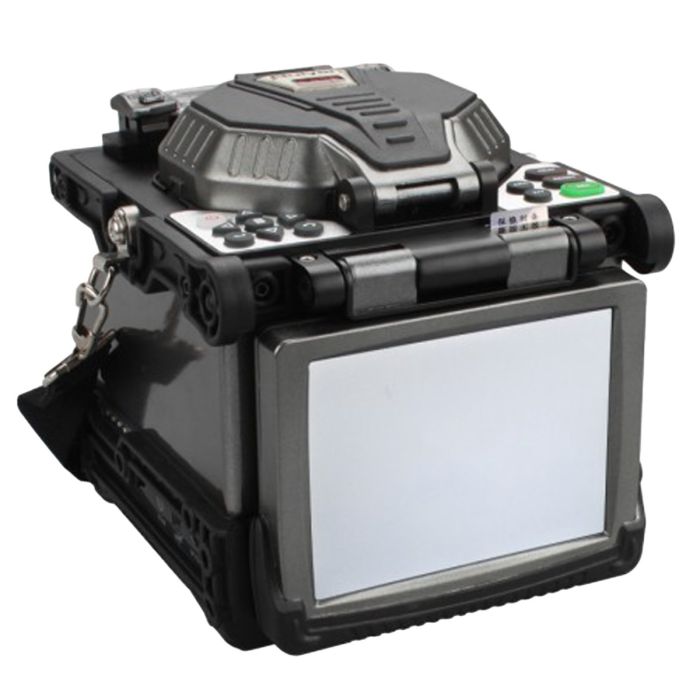

RY-F600P FTTH Automatic Intelligent Fusion Splicing Optical Fiber Fusion Splicer Machine For Fibers
RY-F600P FTTH Automatic Intelligent Fusion Splicing Optical Fiber Fusion Splicer Machine For Fibers
Buy Top-Quality Aftermarket Heavy Machinery And Equipment Parts At Disenparts For Fibers Excavators, Wheel Loaders, Bulldozer, Backhoe, Skid Steer Loader, Scissor Lift Spare Parts. Find More About Diesel Engine Parts, Construction Machinery Parts, Agriculture Machinery Parts At Disenparts.You may encounter lead compounds, mineral oils and phthalates during installation or application. For more information, please visit www.P65Warnings.ca.gov
In stock
Estimate Shipping Methods
,
Please Carefully Check All Pictures and Part Numbers in the Listing to Make Sure It's the Correct Product you Need
Part Number: RY-F600P RY F600P
Applications:
For Fibers SM ITU-T G.652 MM ITU-T G.651 DS ITU-T G.653 NZDS ITU-T G.655
Product Information:
Fiber cleaved length: 10 ~16mm (Coating diameter<250µm);16mm(Coating diameter250~1000µm)
Fiber diameter: Cladding diameter:80 ~150µm , Coating diameter:100 ~1000µm
Auto focusing: Available
Fiber aligning method: Core aligning, clad aligning, manual aligning
Average splice loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS)
Splicing time: Typical 9 sec,with standard SM fiber
Heating time: Typical 36 sec
Applicable sleeves: 60mm, 40mm and a series of micro sleeves
Tension test: 2N(option)
Electrode life: 5000
Battery capacity: Typical 400 cycles (splice and heat)
Monitor: 5.1 inch TFT color monitor
Terminal: USB 1.1 and VGA , software upgrade via USB interface
Operating condition: 0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50oCC, respectively, Max. wind velocity of 15m/s
Splicing mode: Auto ,normal
Fiber cleaved angle threshold set: 0.1 ~ 10.0 oC , 0.1oC step
Power supply: Li-battery 11.8V , AC100-240V DC12.6V/5.0A
Dimension: L169*W152*H155mm
Weight: 2.4kg 2.9kg(battery)
Package Included: Automatic Intelligent Fusion Splicing Optical Fiber Fusion Splicer Machine x 1
