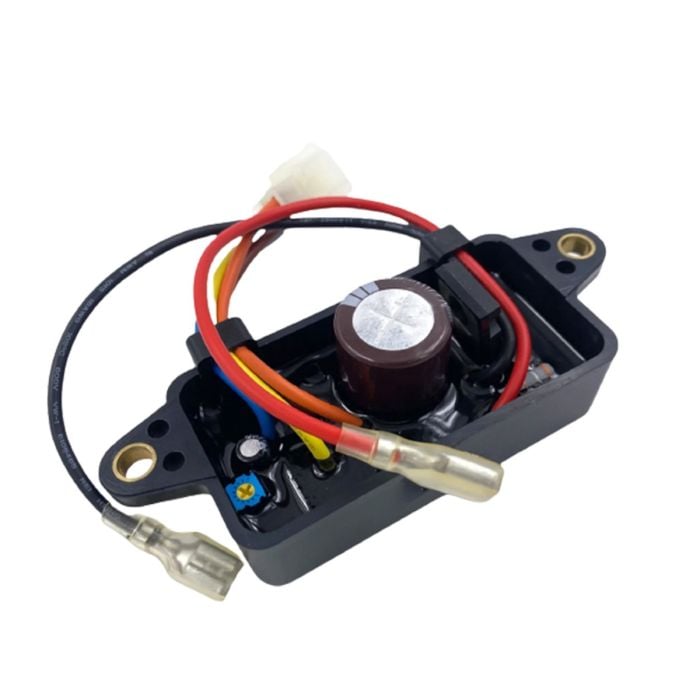

Package Includes: 1* Voltage Regulator

Specification:

Sensing Input Voltage 16 - 22 VAC, 1 phase 2 wire

Voltage Regulation < ±2% (within 4% engine governing)

Power Input: Voltage 80 - 120 VAC, 1 phase 2 wire

Voltage Build Up Residual volts at AVR terminal >1 VAC

Excitation Output Voltage 5 - 85 VDC

Voltage Adjust Range 110 VAC ± 15%

Current: Continuous 3A, Intermittent 4A for 60 sec

Thermal Drift 0.05% per change in AVR ambient

Field / rotor resistance: minimum 25 Ω

Environment

Vibration 1.5G @ 5 - 30 Hz 5.0G @ 30 - 500 Hz Relative Humidity < 95%

Operating Temperature -40 ~ 60 C

Storage Temperature -40 ~ 85 C

Applications:

For Yamaha Generator EDL6500S

For Kubota

For Honda

For Kawasaki

For Denyo

For Sawafuji

Replacement Parts. As Good As OEM at a Fraction of the Price. Exact Same Performance as Original
